Bo Mạch Chủ Mainboard ASRock H110M-HDV/ R 3.0 - Hàng Chính Hãng

Hãng: ASRock | Xem thêm các sản phẩm Mainboard - Board mạch chủ của ASRock
Bo Mạch Chủ Mainboard ASRock H110M-HDV/ R 3.0 hỗ trợ bộ vi xử lí Intel® Core™ thế hệ 6 và 7 Socket 1151. Hỗ trợ bộ nhớ DDR4 2133. Trang bị 4 pha điện. Trang bị 4 cổng SAT...
Còn hàng
1,390,000 đ
ĐẾN NƠI BÁN
Công ty:CuongTriNguyenXem thêm các sản phẩm Mainboard - Board mạch chủ bởi CuongTriNguyen
  • Giao hàng toàn quốc
  • Được kiểm tra hàng
  • Thanh toán khi nhận hàng
  • Chất lượng, Uy tín
  • 7 ngày đổi trả dễ dàng
  • Hỗ trợ xuất hóa đơn đỏ
Giới thiệuchi tiết

Giới thiệu Bo Mạch Chủ Mainboard ASRock H110M-HDV/ R 3.0 - Hàng Chính Hãng

  • Bo Mạch Chủ Mainboard ASRock H110M-HDV/ R 3.0 hỗ trợ bộ vi xử lí Intel® Core™ thế hệ 6 và 7 Socket 1151.
  • Hỗ trợ bộ nhớ DDR4 2133.
  • Trang bị 4 pha điện.
  • Trang bị 4 cổng SATA3 tốc độ 6Gb/s.
  • Trang bị chip âm thanh ALC 887, hỗ trợ âm thanh Gaming và Cinema 7.1. Hỗ trợ cho ALC 887 là các tụ audio ELNA chuyên dụng.
  • Trang bị 4 cổng USB 3.0 và 4 cổng USB 2.0
  • Các cổng hình ảnh gồm có: DVI-D, D-Sub, HDMI.

THÔNG SỐ KĨ THUẬT

Unique Feature ASRock Super Alloy
- High Density Glass Fabric PCB
ASRock Full Spike Protection
ASRock Live Update & APP Shop
CPU
 - Supports 7th and 6th Generation Intel® Core™ i7/i5/i3/Pentium®/Celeron® Processors (Socket 1151)
- 4 Power Phase design
- Supports CPU up to 95W
- Supports Intel® Turbo Boost 2.0 Technology
Chipset
 - Intel® H110
Memory
 - Dual Channel DDR4 Memory Technology
- 2 x DDR4 DIMM Slots
- Supports DDR4 2133 non-ECC, un-buffered memory
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. capacity of system memory: 32GB*
- Supports Intel® Extreme Memory Profile (XMP) 2.0

*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
BIOS
 - 64Mb AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 5.0 Compliant wake up events
- SMBIOS 2.7 Support
- DRAM, PCH 1.0V Voltage Multi-adjustment
Graphics

- Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel®HD Graphics 510/530/630
- Pixel Shader 5.0, DirectX 12
- Max. shared memory 1024MB**
- Three graphics output options: D-Sub, DVI-D and HDMI* Supports up to 2 displays simultaneously
- Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz
- Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
- Supports Accelerated Media Codecs: HEVC, VP8, VP9
- Supports HDCP with DVI-D and HDMI Ports
- Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports

*Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

**The size of maximum shared memory may vary from different operating systems.

***Due to chipset limitation, the Blu-ray playback of Intel® HD Graphics is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit.

****Intel® InTru™ 3D is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit.


Audio - 7.1 CH HD Audio (Realtek ALC887 Audio Codec)*
- Supports Surge Protection (ASRock Full Spike Protection)
- ELNA Audio Caps

*To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
LAN
 - PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111C/RTL8111H
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection (ASRock Full Spike Protection)
- Supports LAN Cable Detection
- Supports PXE
Slots
 - 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)*
- 1 x PCI Express 2.0 x1 Slot

*Supports NVMe SSD as boot disks
Storage
 - 4 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
Connector
 - 1 x TPM Header
- 1 x Chassis Intrusion and Speaker Header
- 1 x CPU Fan Connector (4-pin)
- 1 x Chassis Fan Connector (4-pin)*
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
- 1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))

*The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

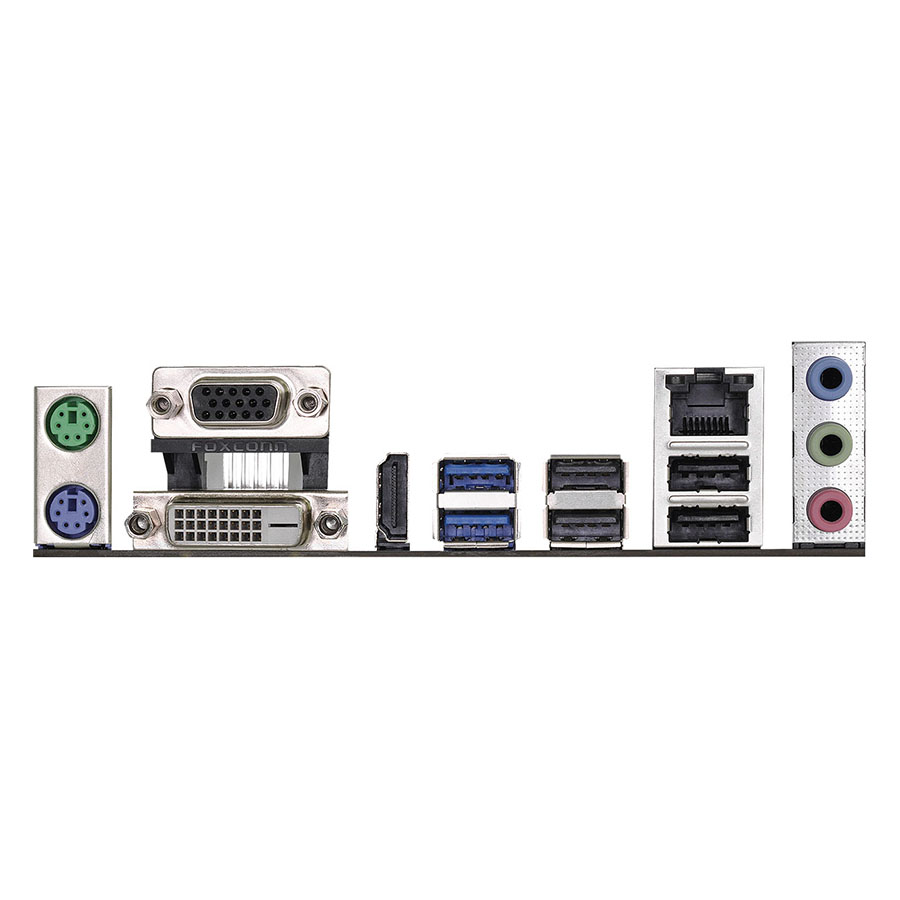

Rear Panel I/O - 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x D-Sub Port
- 1 x DVI-D Port
- 1 x HDMI Port
- 4 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))*
- 2 x USB 3.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Line in / Front Speaker / Microphone

*ACPI wake-up function is supported on USB01 ports only.
Software and UEFI Software
- ASRock Disk Health Report
- ASRock USB Key
- ASRock APP Charger
- ASRock XFast LAN
- ASRock XFast RAM
- ASRock Fast Boot (Fast Boot, Restart to UEFI)*
UEFI
- ASRock EZ Mode
- ASRock My Favorites in UEFI
- ASRock Instant Flash
- ASRock Internet Flash
- ASRock Crashless BIOS
- ASRock OMG (Online Management Guard)
- ASRock UEFI Tech Service
- ASRock Easy Driver Installer

*These utilities can be downloaded from ASRock Live Update & APP Shop.
Support CD - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
Accessories
 - Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables
Hardware Monitor
 - CPU/Chassis temperature sensing
- CPU/Chassis Fan Tachometer
- CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
- CPU/Chassis Fan multi-speed control
- CASE OPEN detection
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore
Form Factor
 - Micro ATX Form Factor: 7.5-in x 7.4-in, 19.1 cm x 18.8 cm
- Solid Capacitor design
OS
 - Microsoft® Windows® 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit*

*To install Windows® 7 OS, a modified installation disk with xHCI drivers packed into the ISO file is required. Please check our User Manual for more detailed instructions.
For the updated Windows® 10 driver, please visit ASRock's website for details.
Certifications
 - FCC, CE

Giá sản phẩm trên Tiki đã bao gồm thuế theo luật hiện hành. Bên cạnh đó, tuỳ vào loại sản phẩm, hình thức và địa chỉ giao hàng mà có thể phát sinh thêm chi phí khác như phí vận chuyển, phụ phí hàng cồng kềnh, thuế nhập khẩu (đối với đơn hàng giao từ nước ngoài có giá trị trên 1 triệu đồng).....


Giá DEVT
Xem thêm thông tin sản phẩm

Thông tin chi tiết

Thương hiệuASRock
Kích thước30cm x 40cm x 10cm
ModelH110M-HDV/ R 3.0
SKU3418104215768
