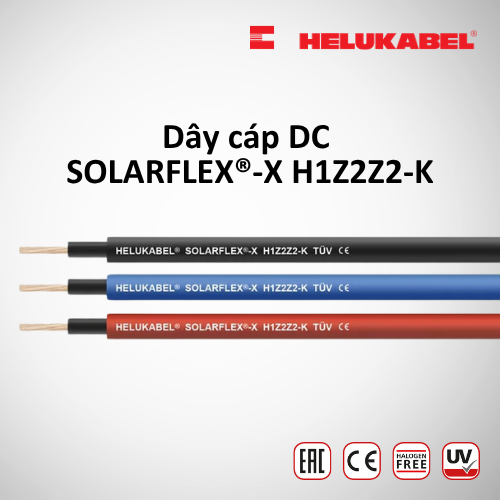

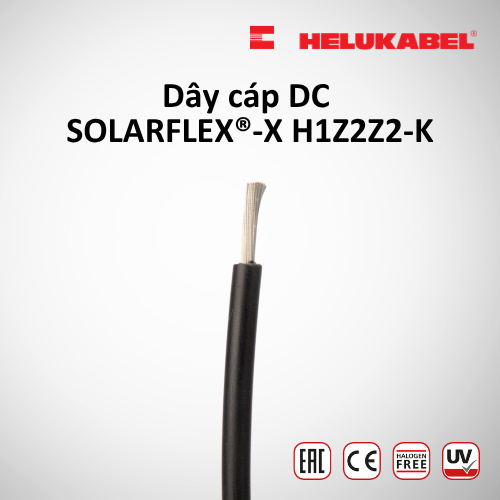

Dây cáp DC HELUKABEL SOLARFLEX-X H1Z2Z2-K | Black | 1 x 4 mm²

Hãng: HELUKABEL
Item DetailsPart no.713530Item descriptionSOLARFLEX-X H1Z2Z2-K BLACK 1 x 4 mm²Sheath colourblackOuter Ø mm (approx.)5.2 - 5.9AWG (approx.)12Cu-weight kg/km38.4Weight kg/km (approx.)60...
  • Giao hàng toàn quốc
  • Được kiểm tra hàng
  • Thanh toán khi nhận hàng
  • Chất lượng, Uy tín
  • Bảo hành Array
  • 7 ngày đổi trả dễ dàng
  • Hỗ trợ xuất hóa đơn đỏ

Giới thiệu Dây cáp DC HELUKABEL SOLARFLEX-X H1Z2Z2-K | Black | 1 x 4 mm²

Item Details

Part no. 713530
Item description SOLARFLEX-X H1Z2Z2-K BLACK 1 x 4 mm²
Sheath colour black
Outer Ø mm (approx.) 5.2 - 5.9
AWG (approx.) 12
Cu-weight kg/km 38.4
Weight kg/km (approx.) 60.0
Copper base in EUR / 100 kg 150
VPE/m 100,500
Cut-to-length service available no
EAN/GTIN 4060892258992
Customs tariff number 85446010



Technical Data

Cross-linked single core cable acc. to DIN VDE 0283-618 / DIN EN 50618
Temperature range fixed -40°C to +90°C
Permissible operating temperature of the conductor +120°C
Nominal voltage AC U0/U 1000/1000 V
DC U0/U 1500/1500 V
Test voltage 6500 V
Minimum bending radius fixed 5x Outer-Ø



Details

Cable Structure

  • Copper wire tinned, finely stranded acc. to DIN VDE 0295 Class 5 / IEC 60228 Class 5
  • Core insulation: cross-linked compound
  • x = without protective conductor
  • Outer sheath: cross-linked compound
  • Sheath colour: see datasheet



Properties

  • resistant to: UV radiation, ozone, weathering effects, water
  • for outdoor use
  • direct burial
  • halogen-free



Tests

  • halogen-free acc. to DIN VDE 0482-754-1 / DIN EN 60754-1 / IEC 60754-1
  • flame-retardant acc. to DIN VDE 0482-332-1-2 / DIN EN 60332-1-2 / IEC 60332-1-2
  • smoke density acc. to DIN VDE 0482-1034-1+2 / DIN EN 61034-1+2 / IEC 61034-1+2
  • UV-resistant acc. to DIN VDE 0283-618 / DIN EN 50618 Appendix E
  • ozone-resistant acc. to DIN VDE 0283-618 / DIN EN 50618
  • weather-resistant acc. to DIN VDE 0283-618 / DIN EN 50618 Appendix E
  • water-resistant acc. to DIN VDE 0285-525-2-21 / DIN EN 50525-2-21 Appendix E
  • DC Voltage resistance of the insulation acc. to DIN VDE 0283-618 / DIN EN 50618 Tab. 2
  • certifications and approvals:
  • EAC
  • TÜV Rheinland



Notes

  • the conductor is metrically (mm²) constructed, AWG numbers are approximated, and are for reference only



Application

  • SOLARFLEX-X H1Z2Z2-K is used for wiring solar modules. Suitable for direct burial; recommendation: laying in pipes. Not suitable for permanent installation in water. The maximum permissible DC voltage of the system in which the cable is installed must not exceed 1.8 kV. The cable is suitable for use in and on devices and systems with protective insulation (protection class II).

Giá sản phẩm trên Tiki đã bao gồm thuế theo luật hiện hành. Bên cạnh đó, tuỳ vào loại sản phẩm, hình thức và địa chỉ giao hàng mà có thể phát sinh thêm chi phí khác như phí vận chuyển, phụ phí hàng cồng kềnh, thuế nhập khẩu (đối với đơn hàng giao từ nước ngoài có giá trị trên 1 triệu đồng).....


Giá FORM

Thông tin chi tiết

Thương hiệuHELUKABEL
Sản phẩm có được bảo hành không?
Hình thức bảo hànhHóa đơn
Thời gian bảo hành12 Tháng
Xuất xứ thương hiệuĐức
Xuất xứ (Made in)Trung Quốc
Chất liệuCable StructureCopper wire tinned, finely stranded acc. to DIN VDE 0295 Class 5 / IEC 60228 Class 5Core insulation: cross-linked compoundx = without protective conductorOuter sheath: cross-linked compoundSheath colour: see datasheet
Hướng dẫn sử dụngSử dụng đúng chủng loại, kích cỡ sản phẩm theo yêu cầu của hồ sơ thiết kế công trình, theo yêu cầu của hướng dẫn sử dụng các thiết bị điện.
Hướng dẫn bảo quảnBảo quản nơi khô ráo, thoáng mát.
Quy cách đóng góiSản phẩm được bán theo quy cách 10m, 50m, 100m. Với yêu cầu với quy cách khác, xin vui lòng liên hệ với chúng tôi, HELUKABEL Việt Nam.
